What is Software Defined Networking (SDN)?

Software-Defined Networking (SDN) is an approach to network management that uses software to control network devices instead of relying on hardware-based control. Instead of manually configuring every device, network administrators can now program and manage the network from a single location thanks to this paradigm shift. SDN makes networks more scalable, flexible, and agile by dividing the control plane from the data plane. This helps networks quickly adjust to shifting business needs. With the help of this software-driven control, businesses can streamline traffic patterns, implement uniform security guidelines, and spur innovation throughout their infrastructure.

This blog covers SDN architecture and its key components, operational principles, benefits, and mainly the distinctions from traditional networking and SD-WAN, helping business leaders understand how SDN enables agile, programmable, and secure network management. We also highlight relevant courses from NetCom Learning to help you embark on or advance your software defined networking career.

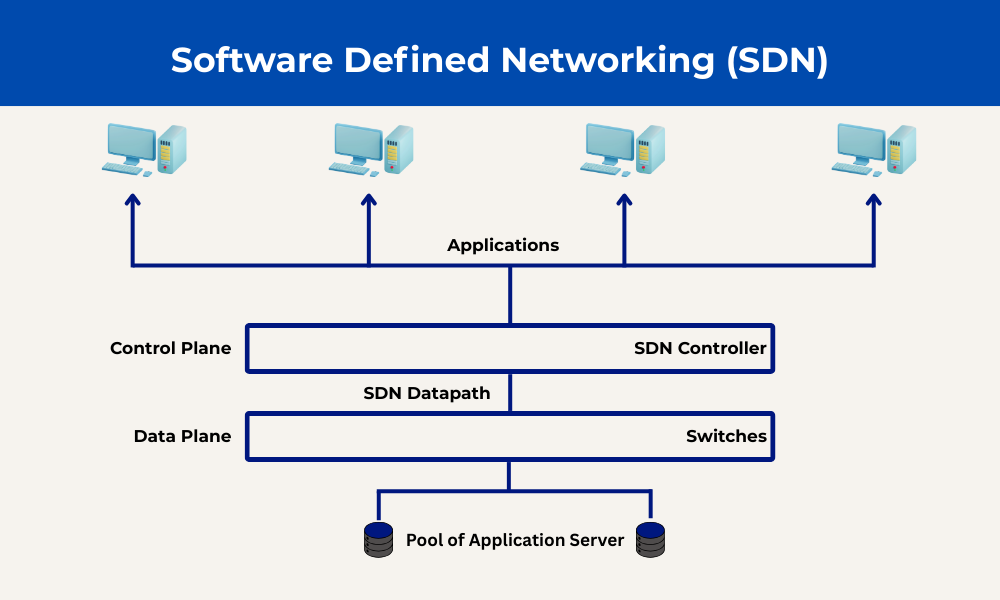

SDN Architecture

A typical SDN architecture consists of three layers working in tandem to deliver programmable and efficient networking: the application layer, the control layer, and the infrastructure layer. Each layer has a distinct role, enabling separation of concerns and centralized management.

Application Layer

Business applications that specify network rules and specifications for security and traffic control are housed in this layer.

Control Layer

By centralizing network intelligence and control, this layer decides how to route traffic and enforces rules for all devices.

Infrastructure Layer

Devices in this layer, both virtual and physical, forward data in response to commands from the control layer.

What is Data Plane?

The part of a network that controls the actual transfer of data packets is called the data plane, sometimes referred to as the forwarding plane or user plane. It is in charge of forwarding packets from the source to the destination in accordance with the control plane's rules. High-speed operations in the data plane guarantee the safe and effective transfer of user data via switches, routers, and other forwarding devices.

Forwarding Data

The forwarding plane sends data packets, guaranteeing their precise and prompt delivery according to flow rules set by the control plane.

Packet Handling

By examining headers, implementing security rules, and guiding packets to their intended locations, the data plane controls data packets.

Routing Decisions

In order to identify the optimal path for data transmission, it uses routing tables to process the protocols and routing information received from the control plane.

Security Enforcement

The data plane can enforce security policies by filtering traffic based on rules defined by the control plane, such as firewall rules and access control lists.

Transient Traffic

By filtering traffic according to rules set by the control plane, such as firewall rules and access control lists, the data plane can carry out security policies.

What is Control Plane?

The control plane in networking is in charge of controlling routing and packet forwarding. The SDN (software-defined network) controller, which manages policies, sends orders to the data plane, and decides on routing, centralizes this function. Centralizing these procedures guarantees uniform policy enforcement, enhances scalability, and permits dynamic network management.

Difference Between Control Plane and Data Plane

What are the Components of Software Defining Networking (SDN)?

Controller

The core component that provides centralized management and control. It orchestrates network behavior, translates business policies into device-level instructions, and maintains a comprehensive network state.

Southbound APIs

Interfaces that connect the controller to network devices, enabling it to program forwarding behavior and collect device status.

Northbound APIs

Interfaces that allow applications to communicate with the controller, requesting network services and enabling automation.

Where is Software Defined Networking Used?

SDN is widely used in data centers, enterprise networks, and service provider environments to enhance network flexibility, security, and automation.

Centralized Control and Management

• Simplifies network oversight by unifying configuration and policy enforcement.
• Enables rapid network adjustments in response to business needs.

Network Programmability and Automation

• Automates provisioning and reduces manual errors.
• Supports dynamic adaptation to traffic and application demands.

Improved Security

• Ensures consistent application of security policies network-wide.
• Facilitates rapid threat detection and mitigation.

Enhanced Performance and Efficiency

• Optimizes traffic flows to reduce latency and maximize bandwidth.
• Prioritizes critical applications for better user experience.

Scalability and Agility

• Allows networks to scale quickly without hardware changes.
• Enables rapid deployment of new services.



How does Software-Defined Networking (SDN) Work?

SDN works by separating the control plane (which makes decisions about where traffic is sent) from the data plane (which actually forwards the traffic to the selected destination). This separation allows centralized, software-based controllers to manage network behavior dynamically and programmatically.

Here’s how SDN operates step-by-step:

1. Centralized SDN Controller: It acts as the brain of the network. It has a global view of the entire network and makes real-time decisions about traffic flow.

2. Southbound APIs: The controller communicates with physical or virtual network devices (switches, routers) via southbound APIs. These APIs allow it to program and manage how data is forwarded across the network.

3. Northbound APIs: The controller exposes northbound APIs to applications and business logic. This enables integration with orchestration tools, automation platforms, and analytics software.

4. Programmability & Automation: SDN allows administrators to program the network behavior using software, enabling tasks like automated traffic routing, load balancing, and security policy enforcement—without manually configuring individual devices.

5. Policy-Driven Management: Instead of configuring each switch manually, policies can be defined at the controller level and enforced across the network consistently.

What are the Different Models of SDN?

SDN can be implemented through various models, each suited to different organizational needs and environments.

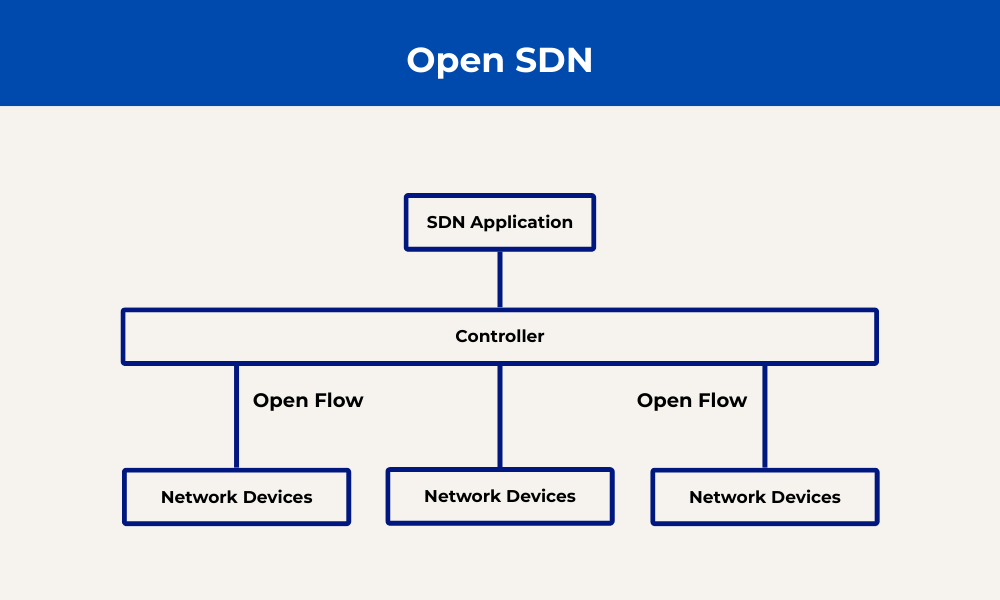

Open SDN

An open model using standardized protocols like OpenFlow to separate control and data planes, promoting vendor interoperability and flexibility.

SDN via APIs

Leverages application programming interfaces to enable programmability and integration of network functions with business applications.

SDN via Hypervisor-based Overlay Network

Uses virtualization to create overlay networks managed by SDN controllers, providing network abstraction and multi-tenancy.

Hybrid SDN

Combines traditional networking with SDN, allowing gradual migration and coexistence of both paradigms.

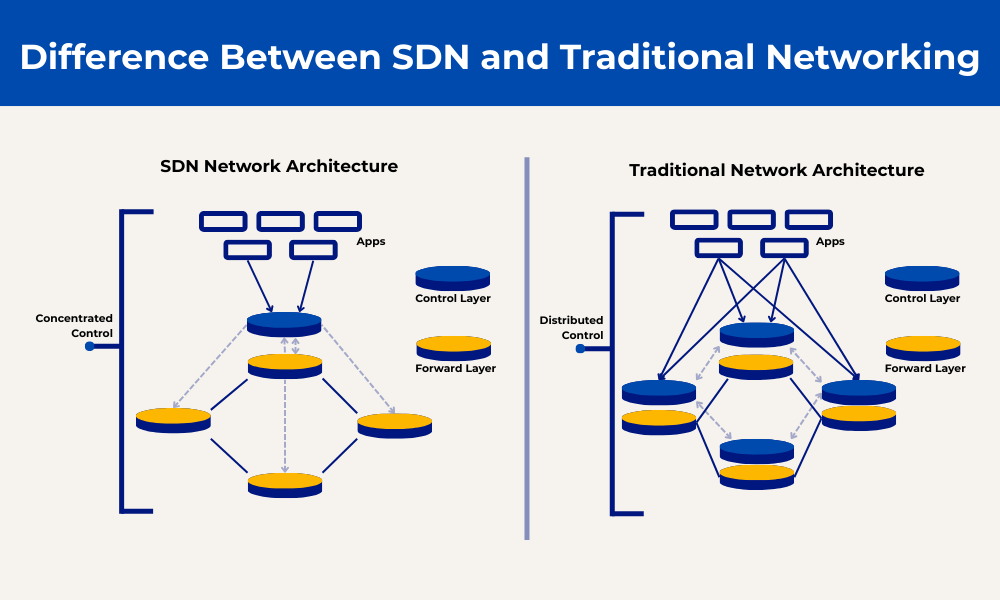

Difference Between SDN and Traditional Networking

Benefits of SDN

SDN delivers and enhances network flexibility, simplifying administration, automating procedures, increasing security, reducing costs, and fostering innovation. Here are few of benefits of SDN.

Increased Flexibility and Agility

• Rapidly adjusts network configurations to meet evolving business needs.
• To maximize performance, dynamic traffic engineering is supported.
• It makes it possible for new services and apps to be seamlessly integrated.

Simplified Management

• By centralizing authority, network supervision is made simpler.
• By abstracting hardware details, complexity is decreased.
• Consistent policy enforcement is guaranteed for every device.

Improved Automation

• Reduces human error by automating repetitive network tasks.
• Enables programmable processes for quicker deployment of services.
• Facilitates real-time network monitoring and adjustments.

Enhanced Security

• Better threat response is achieved through centralized policy control.
• Enables network-wide visibility for proactive defense.
• Simplifies compliance through uniform security enforcement.




What is the Difference Between SDN and SD-WAN?

Master SDN with NetCom Learning

Software-defined networking is a radical departure from the management of networks, for it separates hardware from software. It centralizes control, provides flexibility, and lowers costs; thus, it has become a necessity for any contemporary enterprise craving business agility. Organizations can design their implementation strategies to fit their specific needs anywhere from Open SDN models, API-based approaches, through hypervisor overlays to hybrid deployments, utilizing its transformational powers in the process. NetCom Learning, a Cisco Platinum Learning Partner, offers industry-recognized Cisco certification training that equips professionals with the skills to optimize SDN implementations and modern networking infrastructures.
